Keyboard Studies

Finney Organ

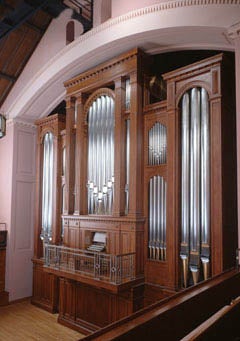

CB Fisk organ encased in wallThe advent of the C.B. Fisk Opus 116, designed and constructed in the late-Romantic tradition, is based on the symphonic style of the great French organ builder Aristide Cavaillé-Coll. A new 76-rank, three-manual French romantic organ, designed and constructed by C.B. Fisk, Inc. , acclaimed organ builders of Gloucester, Mass., is in its new home in Oberlin College’s Finney Chapel. The dedication of the new 4,014 pipe organ was the centerpiece of concerts and events that took place the weekend of September 28, 2001.

In addition to the instruments on the Oberlin campus, students have access to organs in two churches in the community. A two-manual Brombaugh organ, built in the North German baroque tradition, is housed in the First United Methodist Church, next to the conservatory.

The second organ, a large two-manual instrument built by Hal Gober, curator of organs at the conservatory, is in First Church in Oberlin (UCC), which is just across from Tappan Square, about a three-minute walk from the conservatory. This is a marvelous instrument for hymn playing and anthem accompaniment.

Opus 116 Stoplist, C.B. Fisk, Inc.

Grand Orgue, 61 notes, Manual I
Montre 16
Bourdon 16
Montre 8
Gambe 8
Flûte harmonique 8
Bourdon 8
Prestant 4
Octave 4
Doublette 2
Dessus de Cornet V
Grande Fourniture II
Petite Fourniture V‐VIII
Bombarde 16
Trompette 8
Clairon 4
Positif, 61 notes, Manual II, enclosed
Quintaton 16
Principal 8
Salicional 8
Unda maris 8
Cor de Nuit 8
Prestant 4
Flûte douce 4
Nasard 2 2/3
Doublette 2
Tierce 1 3/5
Larigot 1 1/3
Piccolo 1
Plein jeu IV
Cor Anglais 16
Trompette 8
Clarinette 8
Recit, 61 notes, Manual III, enclosed
Bourdon 16
Diapason 8
Viole de gambe 8
Voix céleste 8
Flute traversiere 8
Bourdon 8
Dulciane 4
Flute octaviante 4
Octavin 2
Plein jeu III-IV
Basson 16
Trompette 8
Basson-Hautbois 8
Voix humaine 8
Clairon 4
Pedale, 32 notes
Montre 32
Bourdon 32
Contrebasse 16
Montre 16
Violonbasse 16
Sousbasse 16
Flûte 8
Violoncelle 8
Bourdon 8
Flûte 4
Contrebombarde 32
Bombarde 16
Trompette 8
Clairon 4

There are two operating modes selectable by thumb pistons with LED indicators. The first mode is Mode Français; the second is American Mode. The two modes are interlocked so that only one can be used at a time.

Mode Français uses the following hookdown pedals in the French Symphonic tradition:

Pédales de Combinaison:

Effet d’orage
Tirasse Grand Orgue
Tirasse Positif
Tirasse Récit
Copula Grand Orgue/Grand Orgue
Copula Positif/Grand Orgue
Copula Récit/Grand Orgue
Copula Récit/Positif
Grand Orgue sur la machine
Octaves graves Grand Orgue
Anches Pédale
Anches Grand Orgue
Anches Positif
Anches Récit
Trémolo Récit
Trémolo Positif

The combination action will not be able to control the functions on hookdown pedals, i.e., any of the Pédales de Combinaison when in Mode Français.

American Mode relies on a solid state combination action for changes in registration. When in American Mode the positions of the Pédales de Combinaison will be ignored. American Mode has the following drawknobs arranged above the top keyboard and are affected by the General Pistons:

Grand Orgue/Pedale
Positif/Pedale
Récit/Pedale
Récit Trémolo
Positif Trémolo
Positif/Grand Orgue
Récit/Grand Orgue
Récit/Positif
Octave graves Grand Orgue

American Mode includes a modern multi-level combination action accessed with thumb pistons and a forward and reversing sequencer with both thumb pistons and pedals.

Balanced Swell Pedals: Expression Récit, Expression Positif

Key Action: Direct mechanical (tracker), except for certain large bass pipes.

Servopneumatic Lever: This provides a pneumatic assist (similar to a Barker Machine, but more refined) to the Grand Orgue key action. It also allows the addition of the "Octaves graves" coupler to the organ. This coupler connects the servopneumatic lever to itself one octave lower. Therefore it couples the Grand Orgue itself at sub-octaves, as well as any other division that is coupled to it.

Stop Action: Electric solenoid.

Keydesk: Built into the front of the lower case, three manuals and pedals; manuals 61 keys, CC-c3, naturals of bone, sharps of ebony; flat pedalboard, 32 keys, CC-g1, naturals of maple, sharps of ebony.
